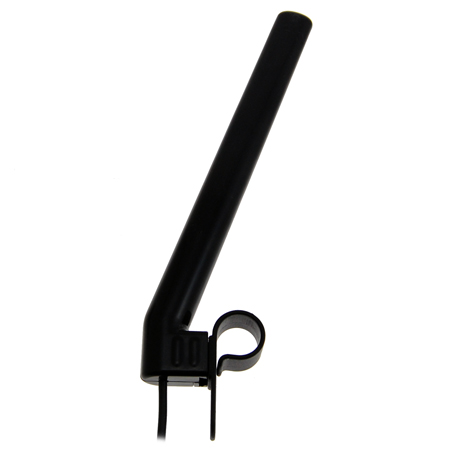

Clip Antenna for 3G Data Cards - SSMB Connection

Description

High speed internet is essential in today's world. Low signal strength causes considerable reduction in data rate. For the mobile user, finding a good signal often becomes a challenge. The gain and elevation of the antenna can make all the difference. An external antenna can provide a fantastic boost to signal strength and transfer speeds. This Data Card Antenna works with all 3G data cards with a SSMB connection and features a handy clip design to attach unobtrusively to your laptop screen

Features:

• GPRS & 3G - The antenna works on GPRS & 3G making it a totally global product.
• Omni Directional - The antenna radiates in an omni-directional pattern. It will not be effected by the way it is facing.
• Portable - The slim-line design of this antenna makes it a portable accessory, ideal for the business man on the move.

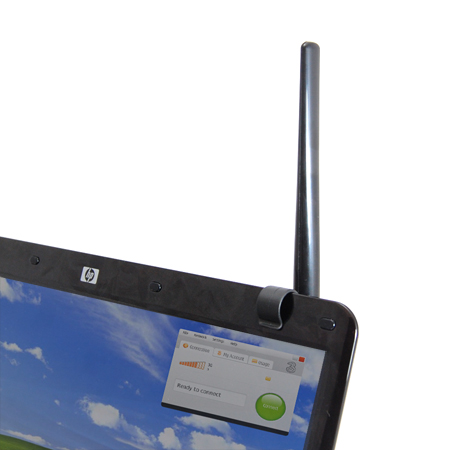

• Lap Top Screen Clip - The antenna is designed to clip to a laptop screen for mobille use.
• Desk Stand - Can be used with a desk stand. Ideal for use with a docking station.


Technical Specification

• Height: 137mm
• Gain : Isotropic: 2dBi
• Cable Length: 50cm
• Connector: SSMB
• Frequencies: GSM850, GSM900, GSM1800, PCS1900 & 3G UMTS


Connector
This antenna comes fitted with an SSMB ready for use with your USB Modem.

Connecting The Antenna:
This antenna comes complete with all the cable you need. The antenna will plug directly into your data card.

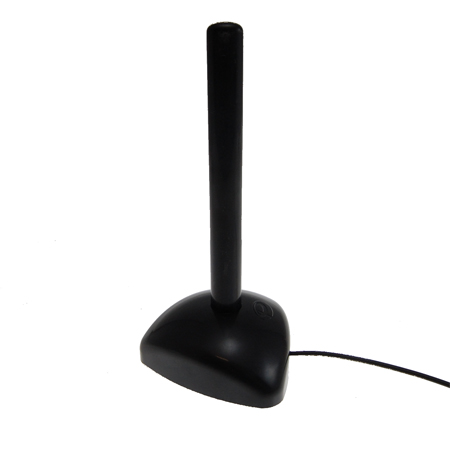

Making The Desk Stand:
A desktop stand is provided to enable the antenna to be used as a standalone unit. The detatchable clip is stowed neatly in the base of the retaining boss.
