Celluon Laserkey CL850 Bluetooth Projection Keyboard

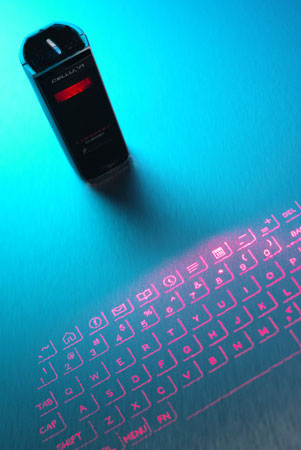

The Celluon Laserkey CL850 is a wireless virtual keyboard that lifts wireless mobile communications to a new height. The Laserkey is a smart, pocket-size device that projects a full-size keyboard through infrared technology onto any flat surface. Users could then type on the infrared images as if typing on conventional keyboards.

Based on the QWERTY layout, the 19mm keys of the Laserkey CL850 enables highly sensitive and accurate input of data on the go, compared to existing technologies such as Graffiti or Thumb keyboards in mobile input performance. The Laserkey CL850 is smaller than most traditional keyboards and easy to carry along with your mobile device.

With the absence of physical buttons, the Laserkey relieves the user from fatigue and helps minimize the ergonomic discomfort inherent in other traditional data input keyboards.
Laserkey's wireless capabilities with built-in Bluetooth enables a cable free connection with other Bluetooth-embedded applications such as PDA's, Smart Phones or PC's. The Laserkey CL850 also has no moving components, and thus more reliable compared to other technologies that encompass numerous mechanical parts.

Dual Functionality:
Keyboard data entry and use of the mouse can be achieved through Laserkey's electronic perception technology, which tracks finger movements on the projected surface (mouse functionality subject to operating system support).

Keyboard project specifications:

• Light Source: Red laser diode.
• 19mm sized QWERTY / AZERTY / QWERTZ layout.
• Keyboard Size: Approx. 304mm*105mm.
• Keyboard Position: Approx 100mm from keyboard device.
• Projection Surface: Non-reflective, opaque flat surface.
• Keyboard Stroke: Built in buzzer (mute on / off the sound).
• Visibility : Visible in 1000-5000 lux ambient light.

Keyboard sensor specifications:

• Illumination: Visible in incandescent light of 1800 lux or more.
• Detection Rate: Up to 400 characters per minute.
• Effective Key Stoke: Approx 2mm.
• Operating Surface: Any flat surface.

System Requirements:

• Windows Mobile Pocket PC & Smart Phone Edition.
• Symbian.
• Palm OS.
• BlackBerry.
• Windows 2000/XP or higher.
