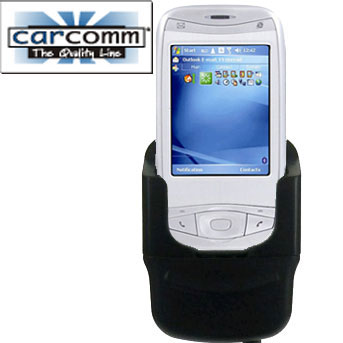

Carcomm XDA Mini S & MDA Vario Car Kit

Professionally installed car kit for the i-mate K-JAM & MDA Vario, with advanced noise cancelling DSP that gives perfect call clarity every time.
Completely integrated within the car, charging your smart phone whilst also channeling all audio transmissions through the car. Listen to your MP3 collection stored on your smart phone with the same quality as your own stereo. Working in conjunction with Sat Nav software, the CarComm car kit will also play voice directions though your cars speakers with perfect clarity. Supplied un-directional microphone ensures great sound clarity with every call.

Due to the way calls and audio are handled within the K-JAM, the cradle has a switch on the base so that when used with the car kit it supports full radio muting during a voice call, but if available, still allows GPS navigation commands to be heard through the speaker system.

Specifications:

• Operating temperature: -20C to +80C
• Housing: PC-ABS
• Dimensions (WxHxL): 89 mm x 27 mm x 71 mm
• Operating voltage: 10,0 V to 16,5 V
• No load current: 20 mA + Battery load
• Operating current: 130mA + amplifier + battery load (max. 3A)
• Loading current: max. 550 mA
• Car radio mute: max. 200 mA
• Idle mode & turn off timer: 0 mA
• HFK turn off timer duration: 1 hour
• Echo reduction: ca. 29 dB
• Car radio power: max. 150W Sinus

What's in the box?

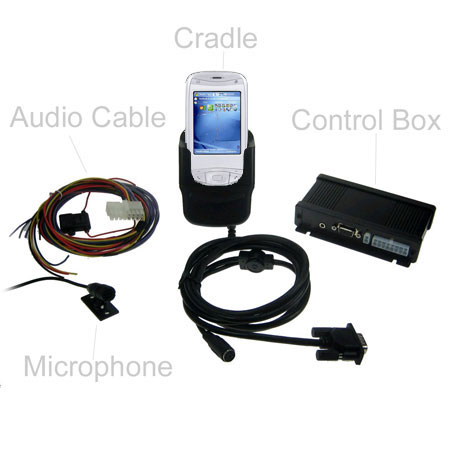

i-mate K-JAM cradle Docking station and system cable Interface module Passive microphone Adhesive window GSM antenna Radio adaptor / mute cable Hands-free loudspeaker User Manual
