Which 3G Antenna do I need?

Monday 2nd March 2009 by Andy Simpson in Mobile Accessories, Mobile Broadband, Mobile Technology.

This is part of a series of posts on How to improve your mobile broadband signal. Here’s what we’ve covered:

UPDATE 23/03/2010: We’ve just updated the compatibility chart to include all of the latest dongles that are currently available from all UK networks. For the latest dongles, please visit the 3G dongle antenna compatibility page.

The table below shows the current 3G Broadband Dongles and the Antennas that are available. If you aren’t sure which dongle you have, our post on how to boost your 3G signal will show you where to find this information.

There are now three two different types of antenna available. The standard Clip Antenna is designed to be a portable solution that clips onto the screen on your laptop or sits on your desk. It is omni-directional, which means that it will pick up signals from all directions. The High Gain 3G Directional Antenna is a more powerful signal booster. It is directional, which means that you will need to point this towards your networks transmitter in order for it to improve the signal. The High Gain antenna when positioned correctly will make a significant difference to the signal you receive, and can be wall mounted as a permanent fixture. The latest dongle is the Panel Antenna. This is similar in many ways to the High Gain Antenna, but is slightly stronger and is weatherproof – making it perfect for outdoor installations.

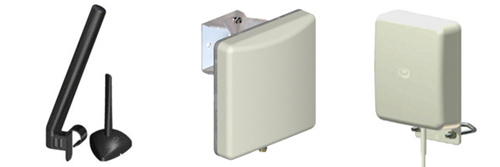

Mobile Broadband Signal Boosters

Clip Antenna - High Gain Antenna - Panel Antenna

More information on the different antennas can be found on our blog post “Mobile Broadband Antenna Range extended

To find your dongle quickly, press “ctrl” and “f” on your keyboard, and then type in the model number of your dongle (eg: E160G) to search this page. If your dongle is not listed here, don’t worry, this is only a snapshot of the most popular dongles.

We’ve now made it easier for you to find the right antenna for your dongle. You can now use the smart filter in the mobile broadband section of the main site. Go to the USB Dongle Antennas and select your dongle from the drop down box at the top of the page to see the antennas that are compatible with your 3G Broadband Modem.

If you still can’t find your dongle, please add a comment with the network, dongle make and model number and I’ll find out which antenna you need and add it to the list. If you have any questions about using the dongle or aren’t sure which one you need, please ask us on the Mobile Fun Forums

Manufacturer Dongle Clip Antenna High Gain Antenna Panel Antenna
3 MF622 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
3 MF627 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
3 E156G Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
3 E160G Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
3 E169 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
3 E169G Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
3 E220 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
BT E170 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
BT E180 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E156G Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Huawei E160 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Huawei E160G Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Huawei E166 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E169 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Huawei E169G Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E170 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E172 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E176 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E180 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E216 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E219 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E220 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E230 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E270 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E510 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei E620 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Huawei E800 Clip Antenna SSMB High Gain SSMB
Huawei K3250 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Huawei K3565 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Novatel U630 Clip Antenna R151N
Novatel X950D Clip Antenna R151N
O2 USB Stick Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
O2 Compass 597 Clip Antenna – TS9
O2 E169 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
O2 880 Clip Antenna SSMB High Gain SSMB
O2 880E Clip Antenna SSMB High Gain SSMB
Option 225 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Option 510 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Option Data Card Clip Antenna – RMCP
Option Express Card Clip Antenna – RMCP
Option GT Max Clip Antenna – RMCP
Option Icon Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Orange E160 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Orange GT Max Clip Antenna – RMCP
Orange Icon Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Orange MF330 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Orange 225 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Sierra Wireless 880 Clip Antenna SSMB High Gain SSMB
Sierra Wireless 875U Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Sierra Wireless 880E Clip Antenna SSMB High Gain SSMB
Sierra Wireless 888 Clip Antenna TS-9
T-Mobile 510 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
T-Mobile 530 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
T-Mobile E110 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
T-Mobile E160 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
T-Mobile E170 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
T-Mobile E220 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Virgin E160 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Vodafone E172 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone K3520 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone K3760 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone USB Stick Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone USB Stick Lite Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone Data Card Clip Antenna – RMCP
Vodafone E270 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
Vodafone E620 Clip Antenna – CRC9 High Gain – CRC9 Panel Antenna – CRC9
Vodafone E800 Clip Antenna SSMB High Gain SSMB
Vodafone Express Card Clip Antenna – RMCP
Vodafone X950D Clip Antenna R151N
Vodafone U630 Clip Antenna R151N
ZTE MF330 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
ZTE MF622 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal
ZTE MF627 Clip Antenna – Universal High Gain – Universal Panel Antenna – Universal

UPDATE: Due to the high number of questions this post raises, I’m closing it to comments and I’ve set up a new thread on the Mobile Fun forums.  Please continue to ask any questions or check compatibility by post there instead.

Jump to the “Which 3G Antenna do I need?” thread on the Mobile Fun Forums.
